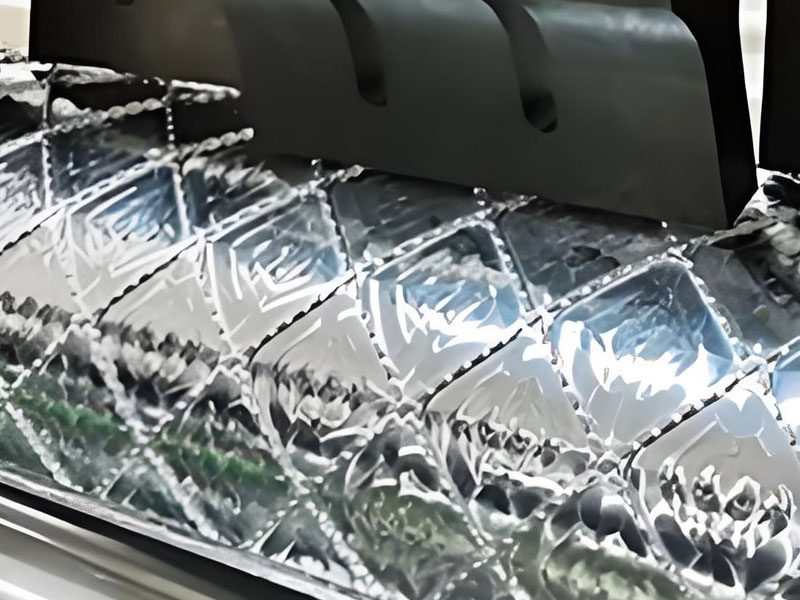

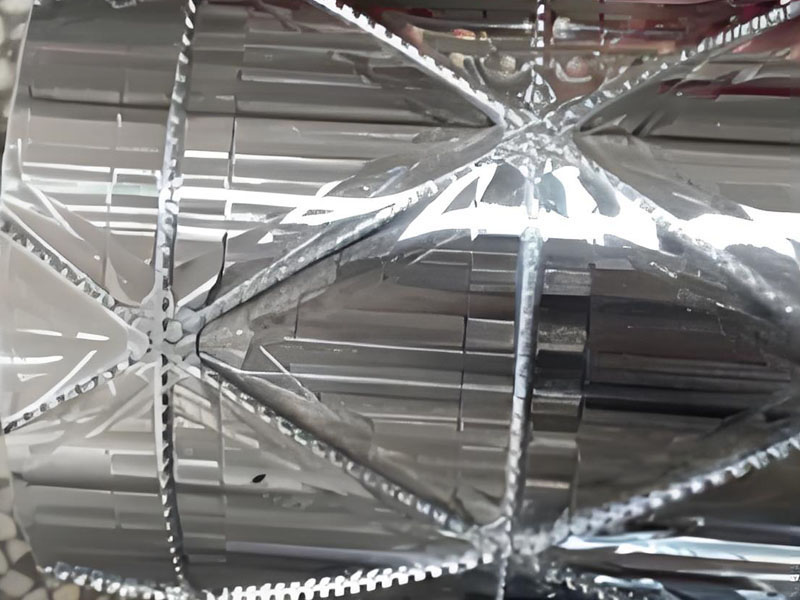

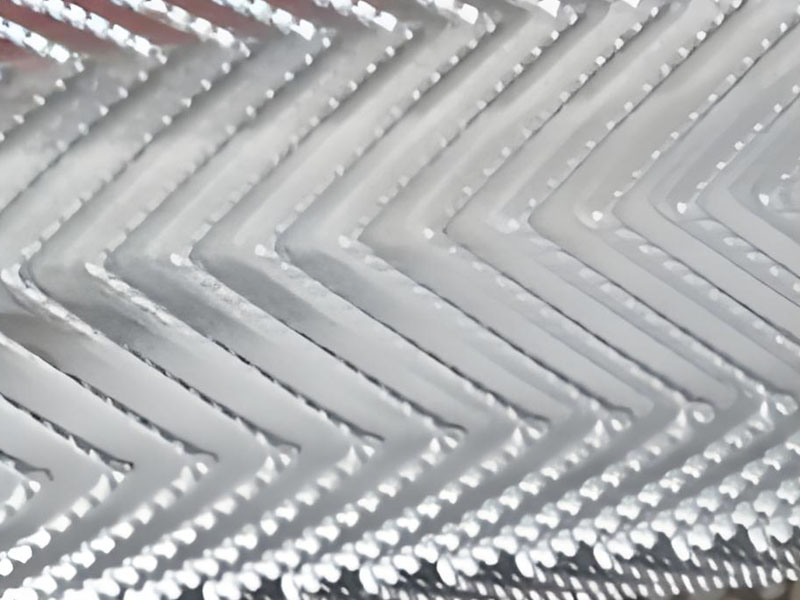

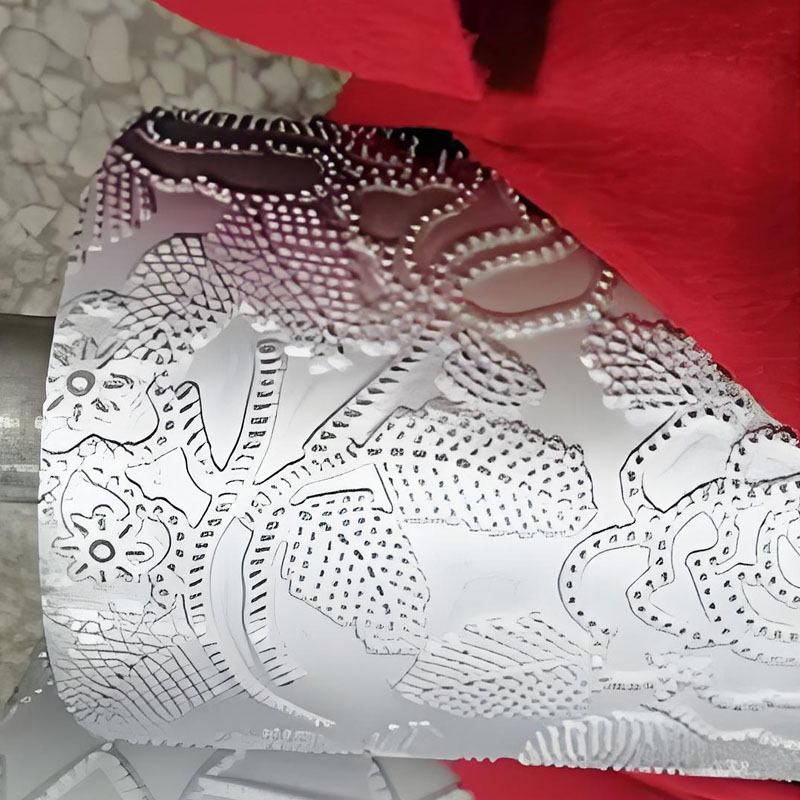

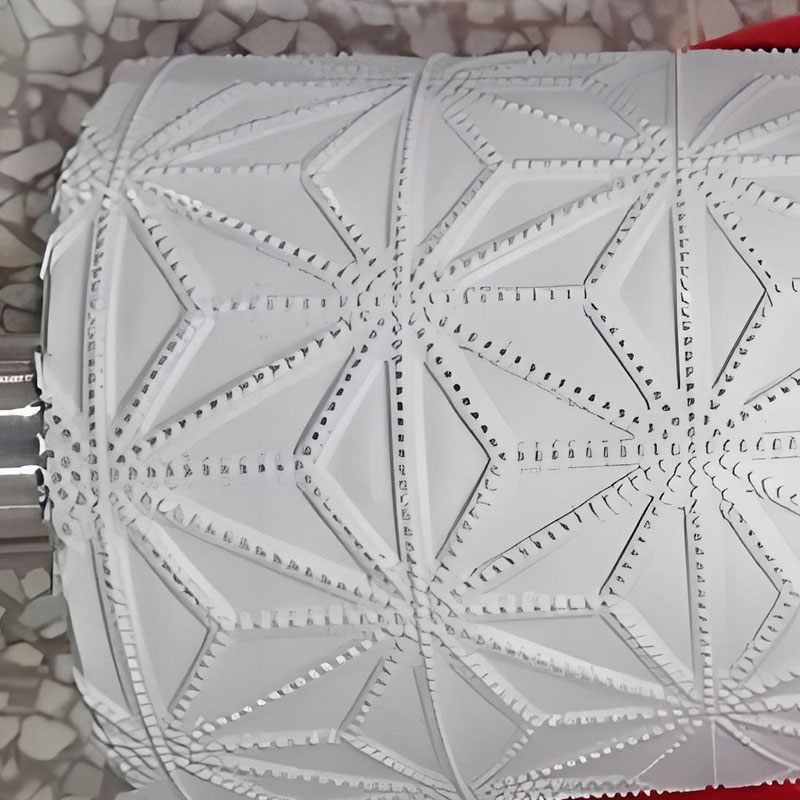

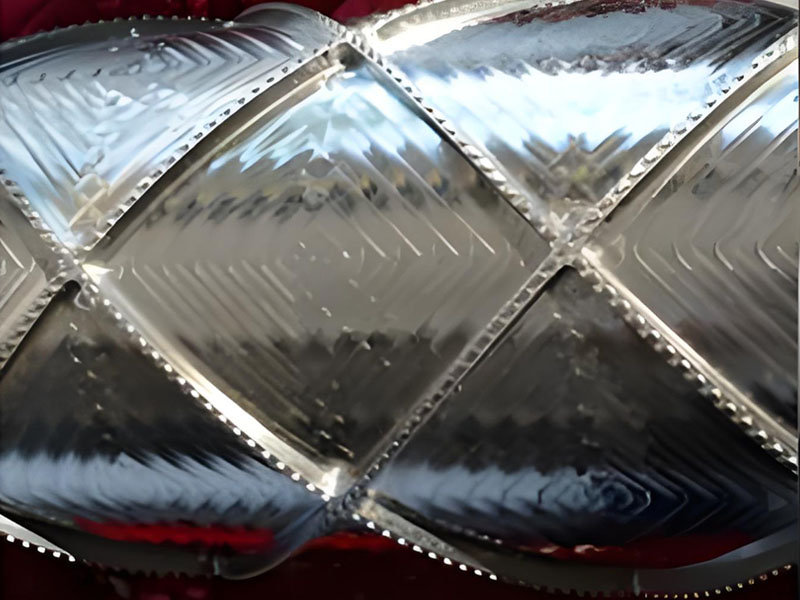

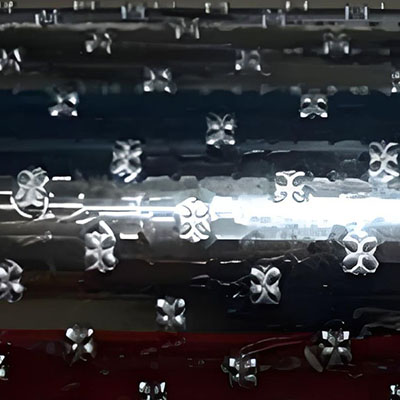

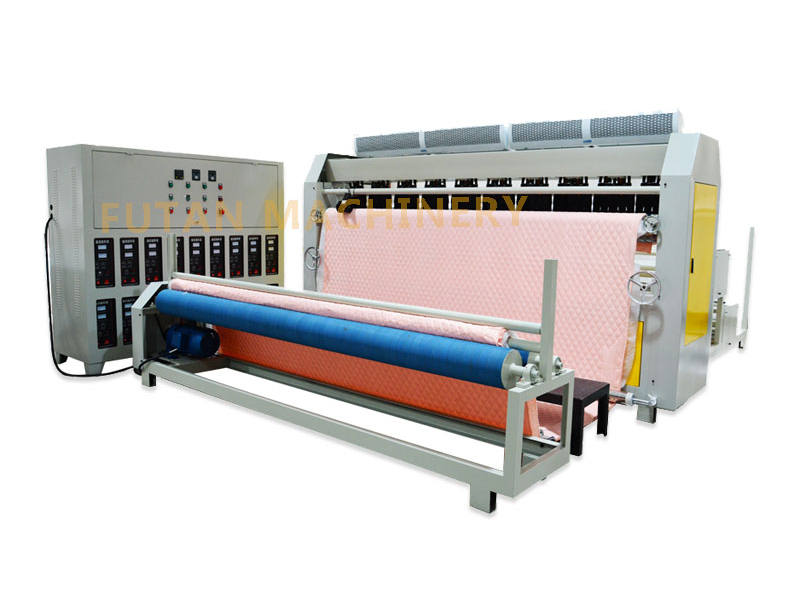

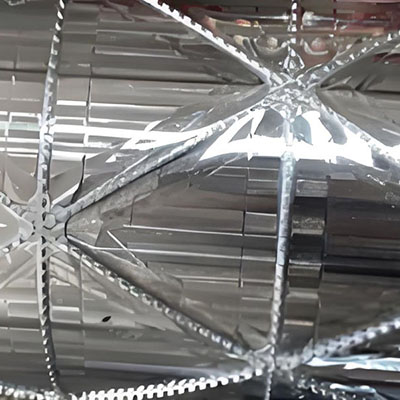

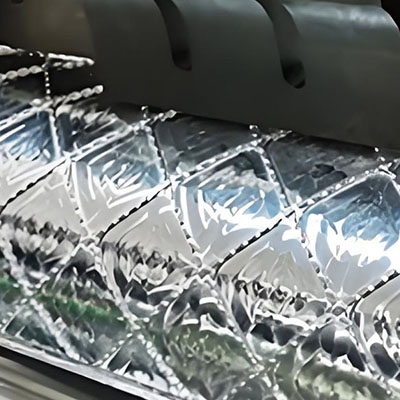

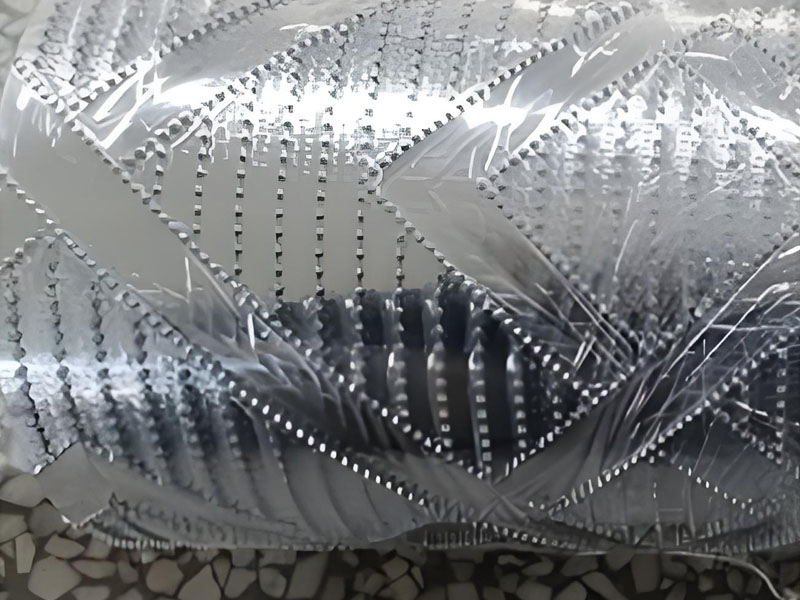

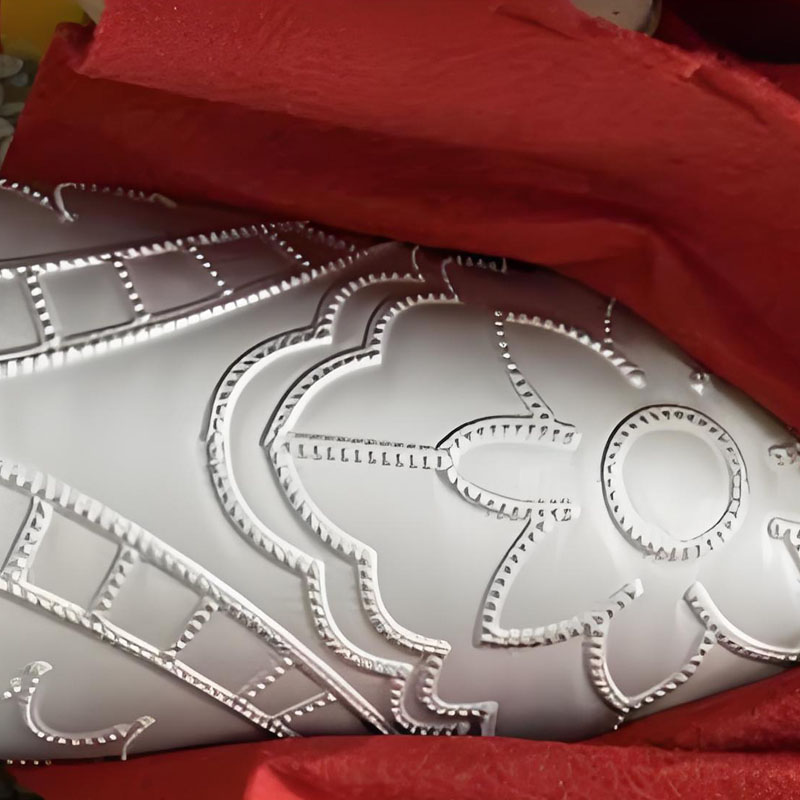

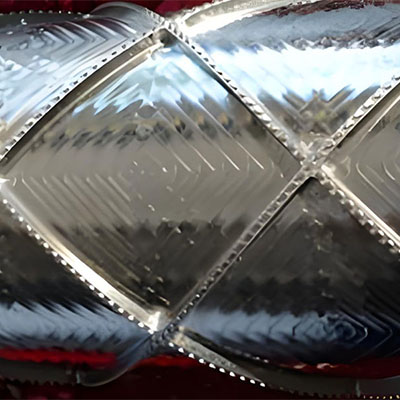

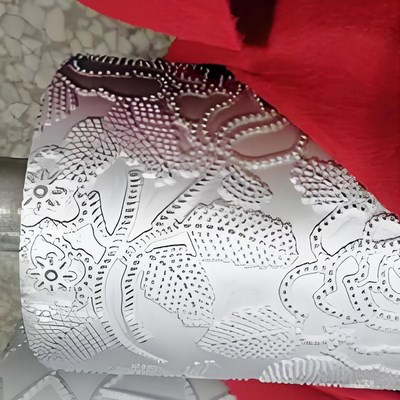

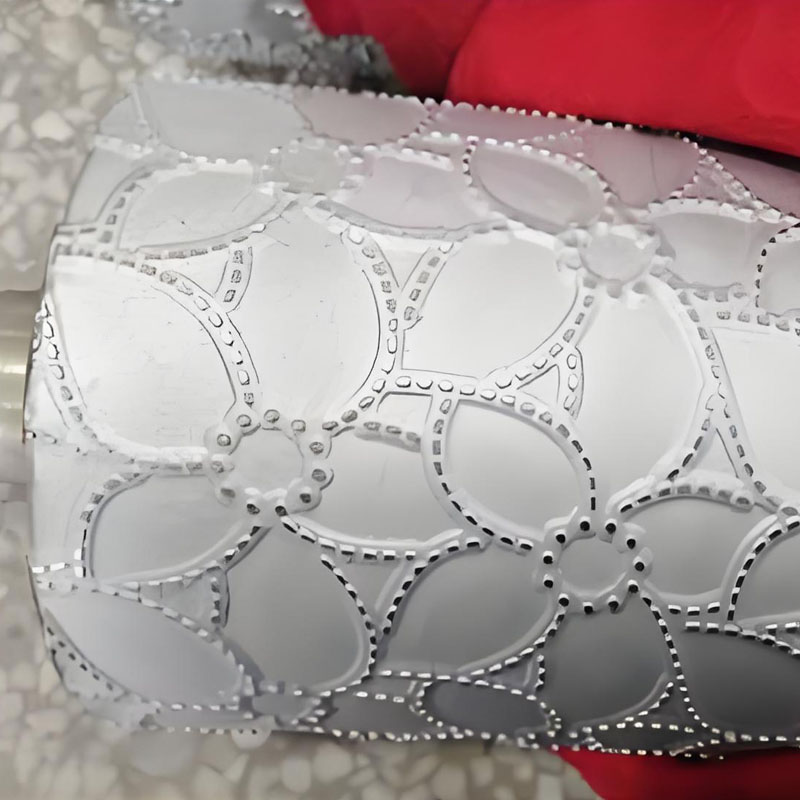

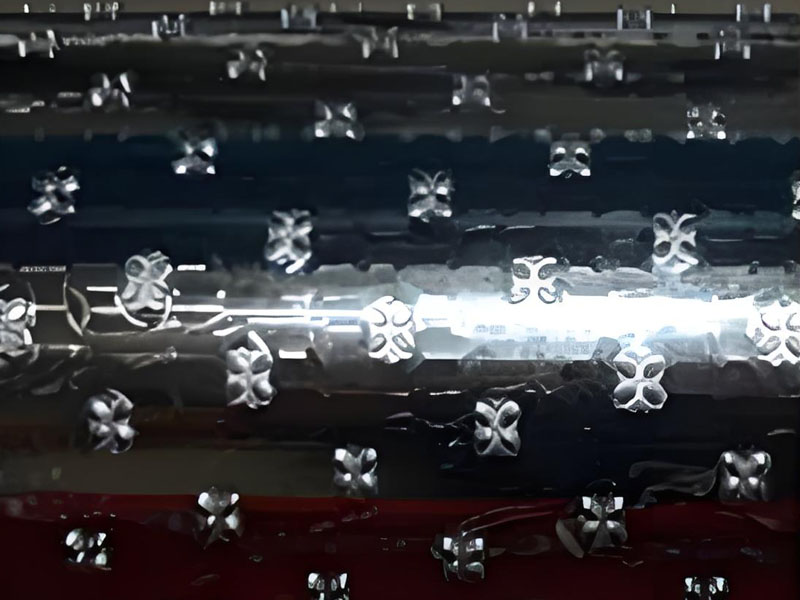

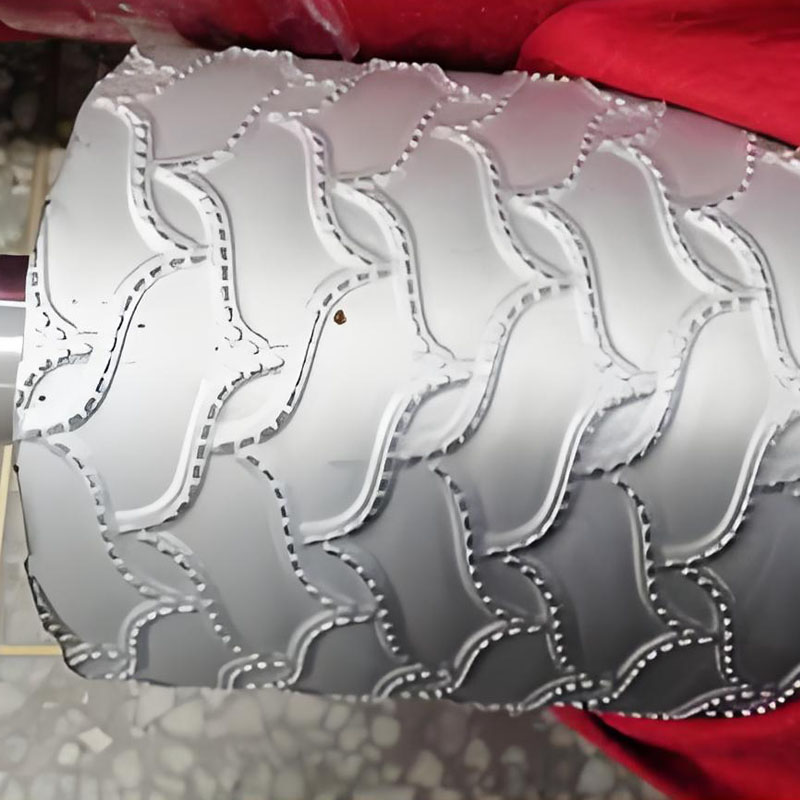

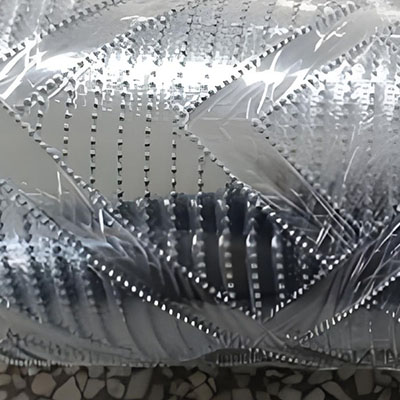

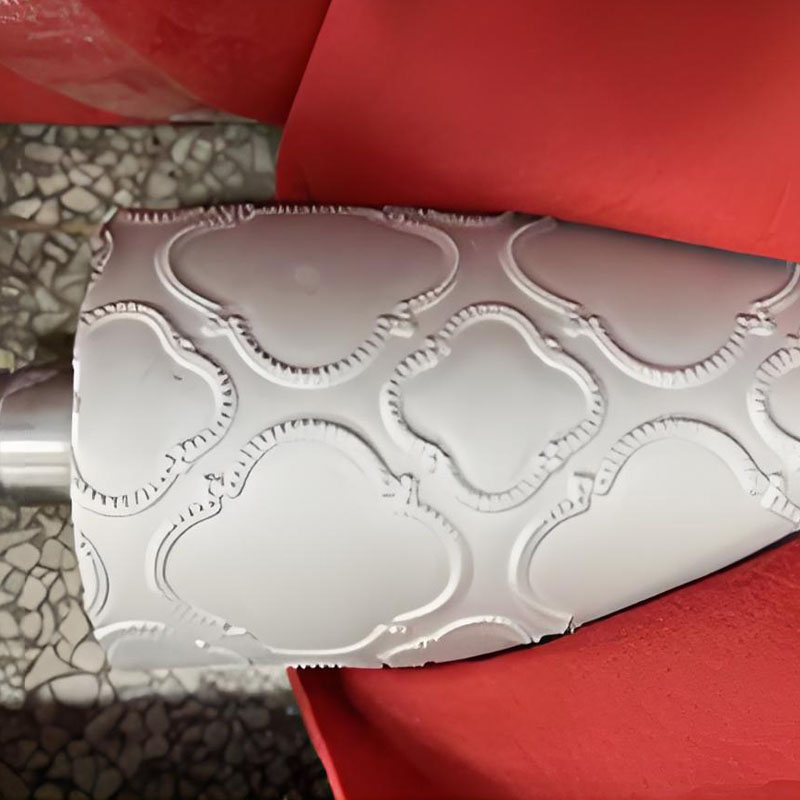

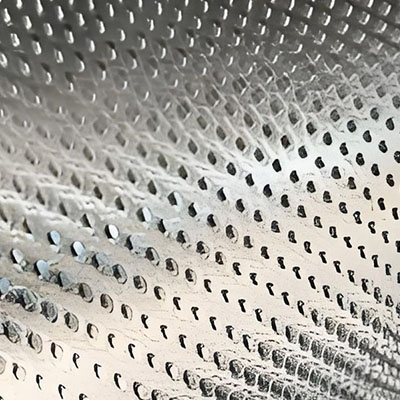

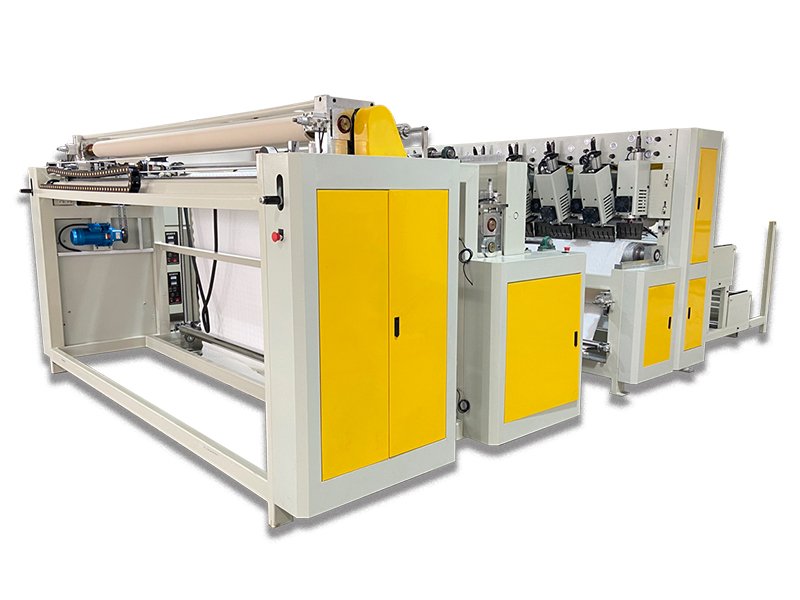

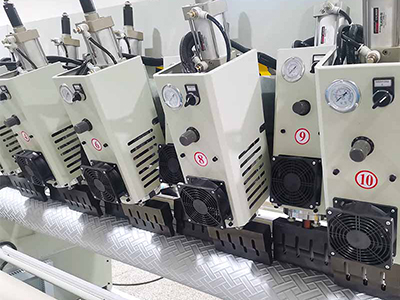

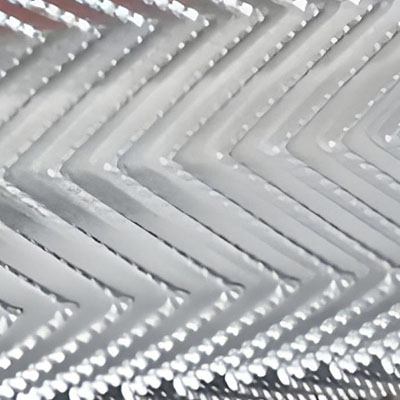

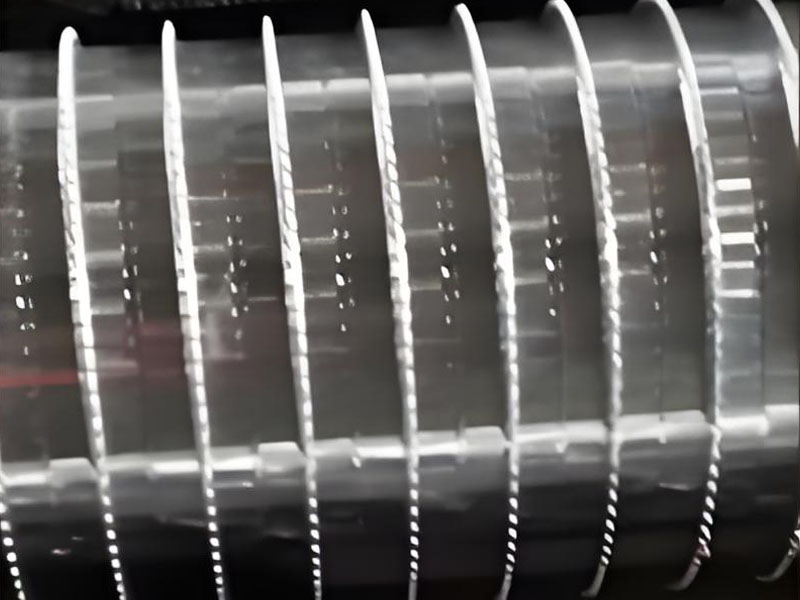

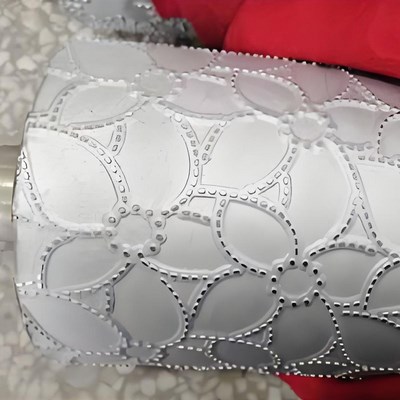

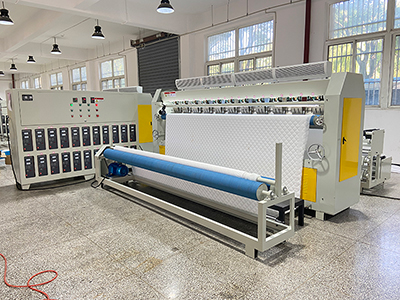

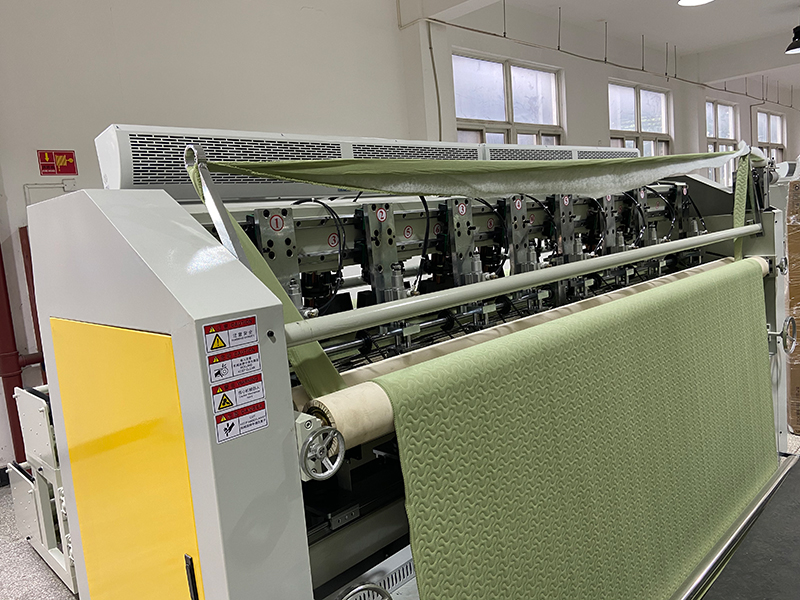

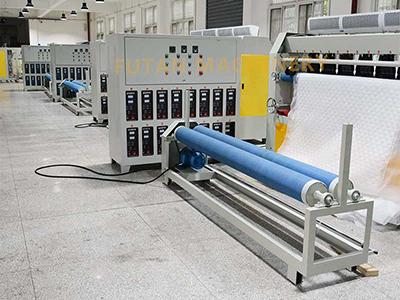

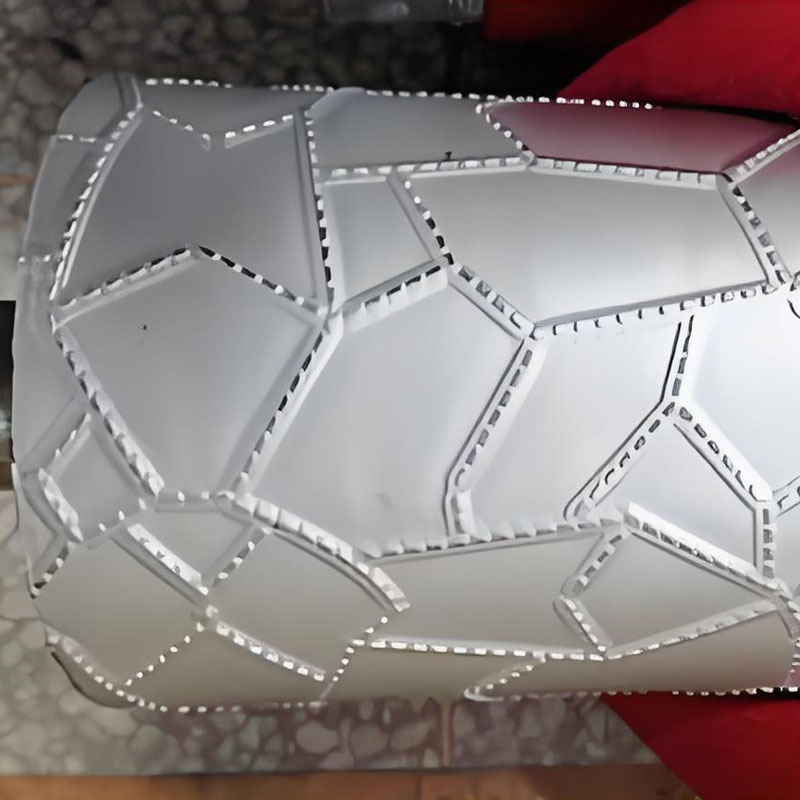

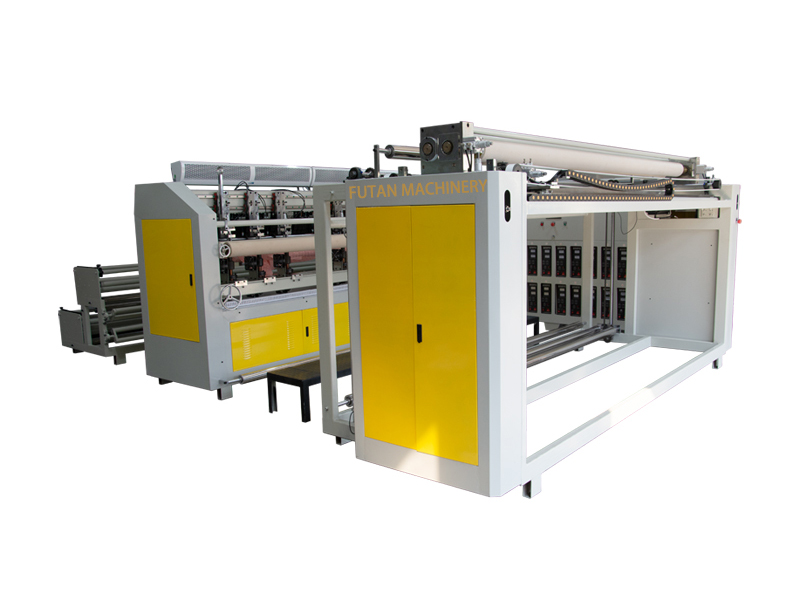

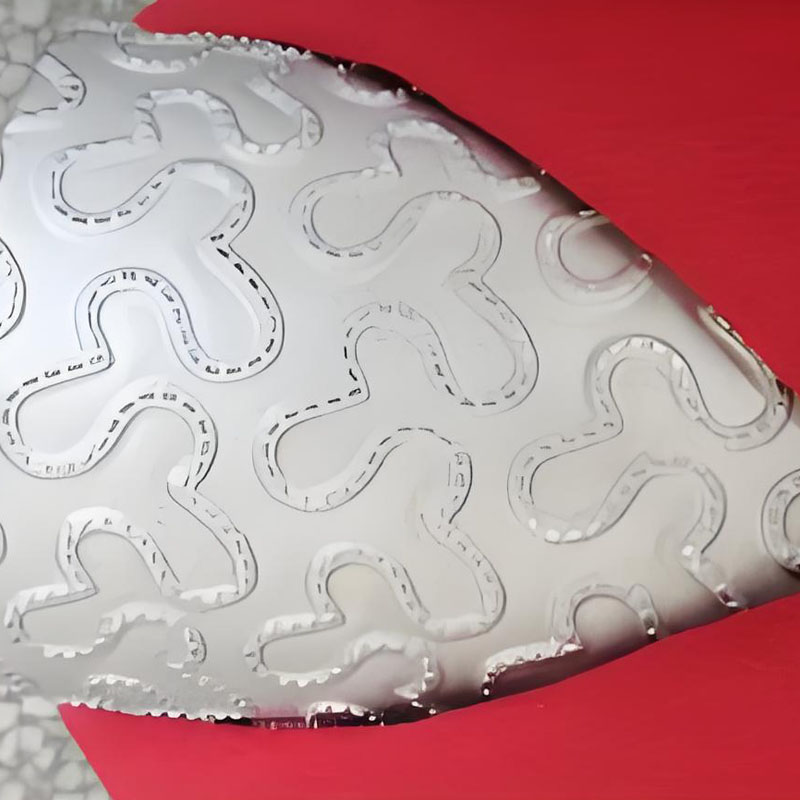

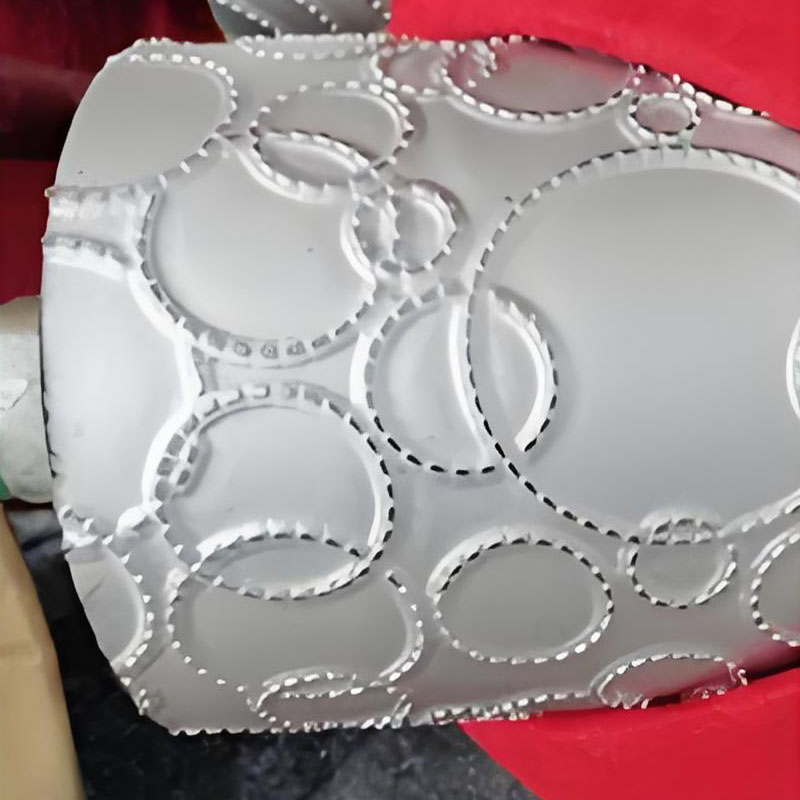

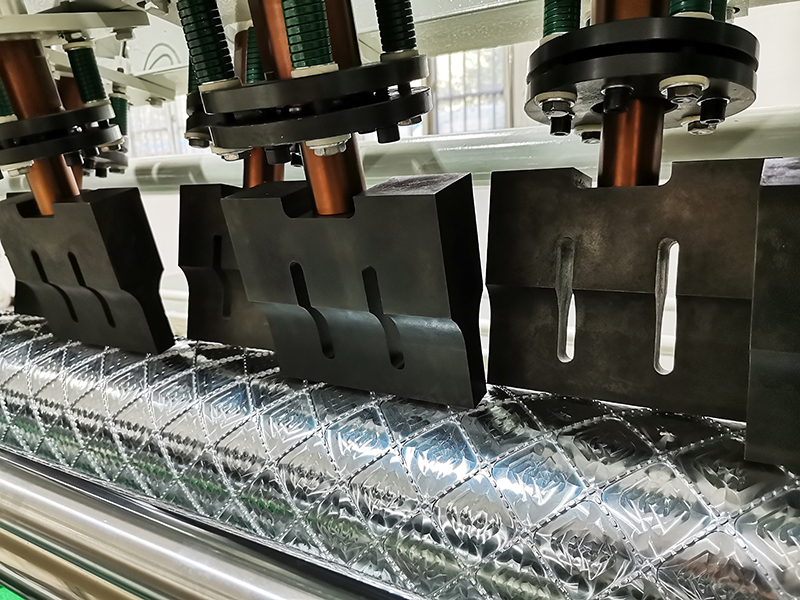

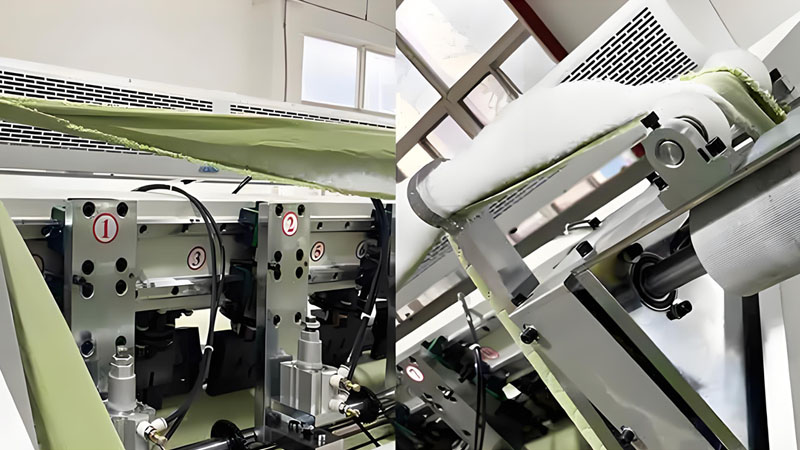

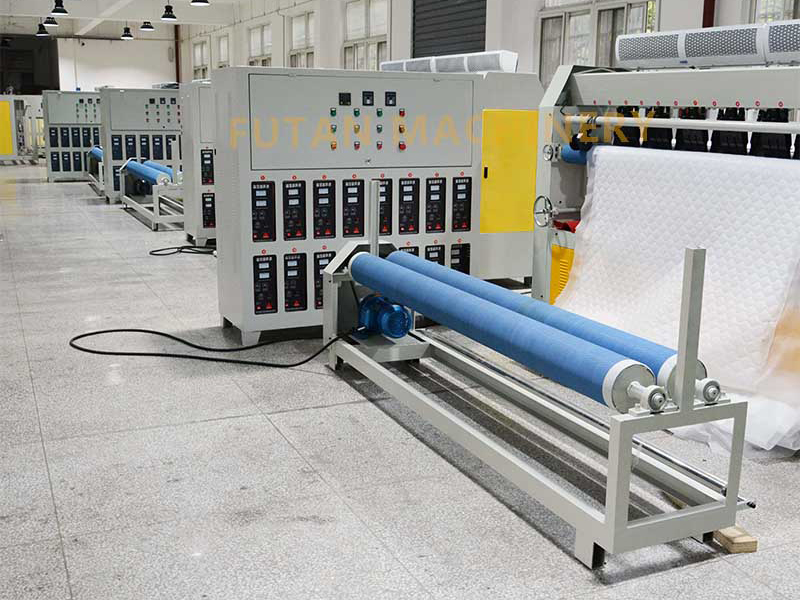

This quilting machine uses ultrasonic technology to bond layers of synthetic fabrics, non-woven materials, spray-bonded cotton, and artificial leather. This bonding method creates strong, detailed patterns without using threads or needles. By changing the pattern roller, users can produce various decorative designs easily. This ultrasonic machine is perfect for making items like quilts, bedspreads, sofa covers, duvet covers, and clothing fabrics, making it a valuable tool for manufacturers looking to improve their products.
| Model | Power supply | Effective width (customizable) | Working speed | Max. quilting weight (20Khz) | Machine weight | Working area (common) |
| JT-1600-S | 5kW 380V 3 phase (220V) | 1600mm | 0-10m/min | Fillings 300gsm | 1500kg | 4*4.5m |
| JT-1800-S | 5kW 380V 3 phase (220V) | 1800mm | 0-10m/min | Fillings 300gsm | 1600kg | 4.2*4.5m |
| JT-2000-S | 5kW 380V 3 phase (220V) | 2000mm | 0-10m/min | Fillings 300gsm | 1800kg | 4.4*4.5m |
| JT-2300-S | 6kW 380V 3 phase (220V) | 2300mm | 0-10m/min | Fillings 300gsm | 2000kg | 4.6*4.5m |
| JT-2400-S | 6kW 380V 3 phase (220V) | 2400mm | 0-10m/min | Fillings 300gsm | 2200kg | 4.8*4.5m |
| JT-2600-S | 7kW 380V 3 phase (220V) | 2600mm | 0-10m/min | Fillings 300gsm | 2400kg | 5*4.5m |
| JT-2800-S | 7kW 380V 3 phase (220V) | 2800mm | 0-10m/min | Fillings 300gsm | 2600kg | 5.2*4.5m |
| JT-3000-S | 8kW 380V 3 phase (220V) | 3000mm | 0-10m/min | Fillings 300gsm | 2800kg | 5.4*4.5m |
| JT-3200-S | 8kW 380V 3 phase (220V) | 3200mm | 0-10m/min | Fillings 300gsm | 3000kg | 5.6*4.5m |
The ultrasonic sewing embossing machine is a type of seamless and binderless compound machine that makes use of ultrasound technology to carry out no-needle, no-thread embossing processes.
This dot line sewing quilting machine utilizes ultrasound technology to complete no-needle, no-thread operations.

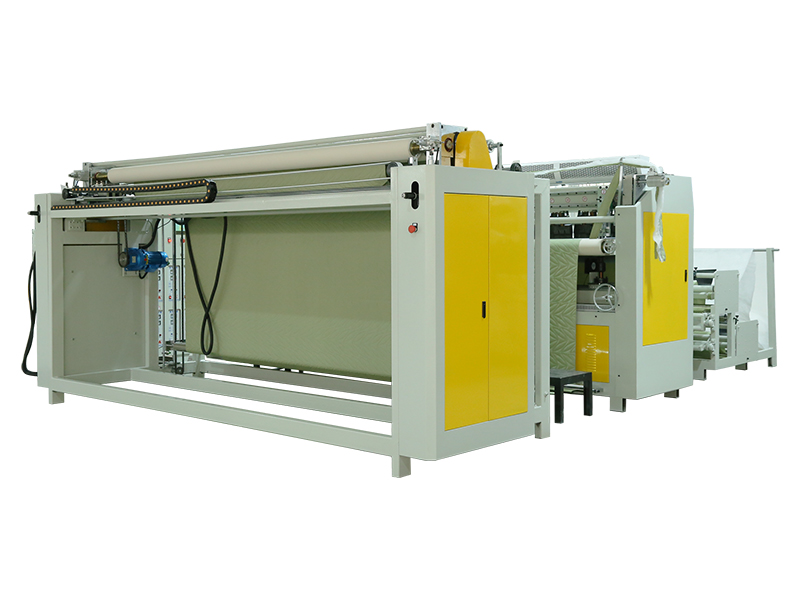

The automatic system sewing quilting machine is a multifunctional piece of equipment that integrates ultrasonic sewing, compound embossing, ultrasonic slitting, and ultrasonic crosscutting functions.
The ultrasonic tape cutting machine can cut all kinds of woven tapes, including Velcro, shoelaces, zippers, labels, as well as various leather tapes.
The ultrasonic label cutting machine is mainly applied to the slitting of fabric tapes and label cloths (mark), as well as tape fabrics of polyester, nylon, cotton, artificial fabric and natural rubber.
The ultrasonic ribbon slitting machine is mainly suitable for the slitting of fabric tapes and label cloths (mark), as well as tape fabrics of polyester, nylon, cotton, and artificial fabric.
The ultrasonic slitting machine (wide width) is used for the slitting and rewinding of towel cloths, glasses cloths, dust-free cloths, mops, antistatic cloths, polyester cloths, and medical mattresses.
The ultrasonic slitting machine (narrow width) is mainly suitable for slitting of polyester fabric, nylon, artificial fabric and other tape fabrics.
Contact us now for inquiries or more details about our ultrasonic textile machinery. We're here to help you find the right solution for your production needs.
