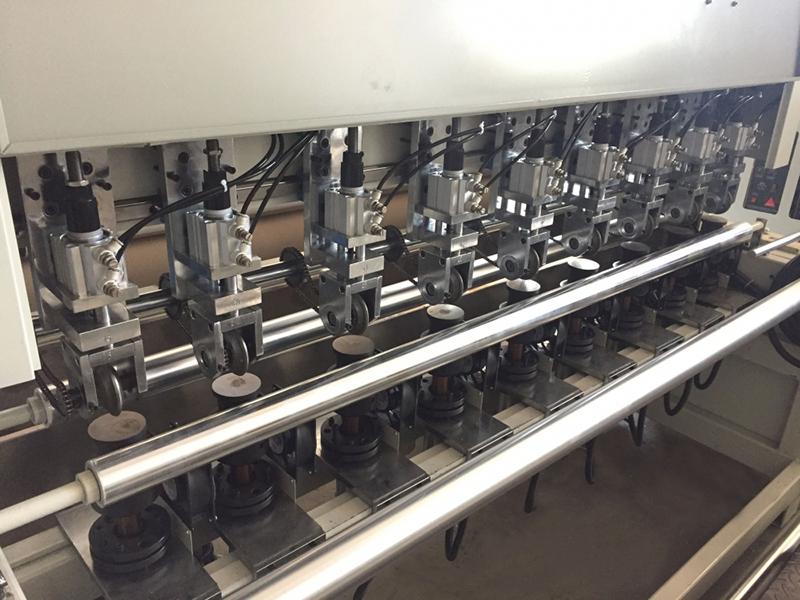

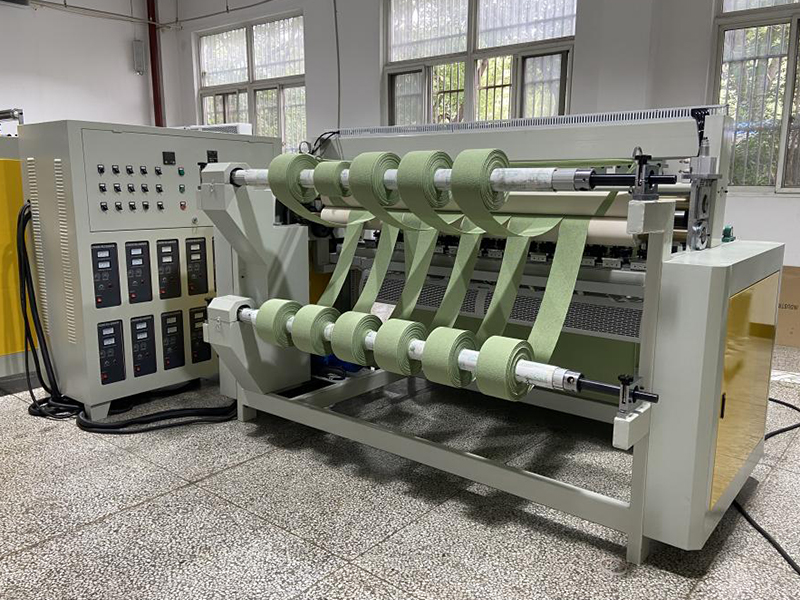

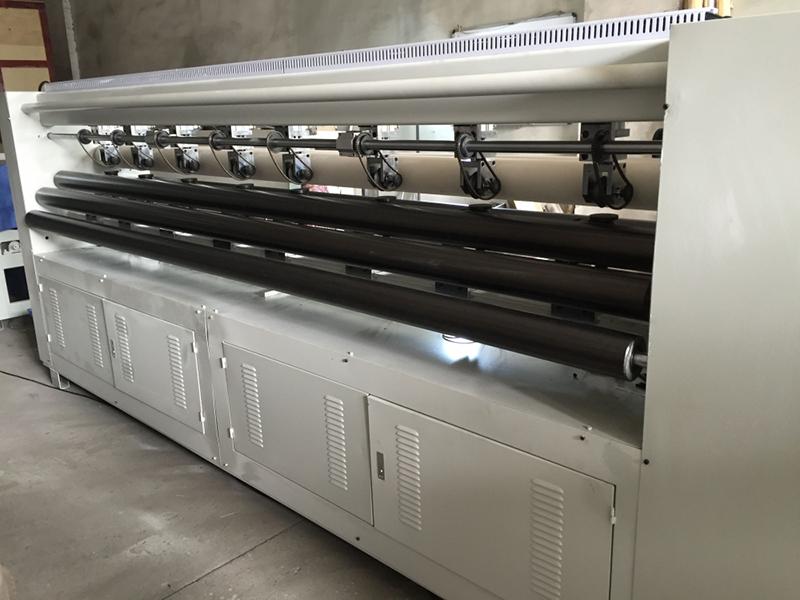

Ultrasonic Slitting Machine (Wide Width)
  • Ultrasonic Slitting Machine (Wide Width)
  • Ultrasonic Slitting Machine (Wide Width)
  • Ultrasonic Slitting Machine (Wide Width)

Ultrasonic Slitting Machine (Wide Width)

Fabric cutting, industrial garment cutter, clothing cutting, sewing equipment

Parameters

Power Supply 220V
Input Power 5KW
Max. Unwinding Diameter 400mm
Max. Unwinding Width 1600~3000mm
Min. Slitting Width 150mm
Max. Slitting Speed 30m/min
Diameter of Air Shaft 3inch
Outline Size(length×width×height) 2000*3500*1700mm
Net Weight 1500KG
Request a Quote

Application

The Ultrasonic Slitting Machine (Wide Width) is mainly suitable for the slitting of fabric tapes and label cloths (mark), as well as tape fabrics of polyester, nylon, cotton, and artificial fabric.

  • Ultrasonic Slitting Machine (Wide Width)
  • Ultrasonic Slitting Machine (Wide Width)

Features

  • The ultrasonic slitting machine (wide width) uses a stable steel structure for high-speed operation, which effectively improves the mechanical durability and the service life.
  • The slitting speed is controlled by the frequency conversion motor, while the slitting width can be arbitrarily adjusted with a minimum of 100mm.

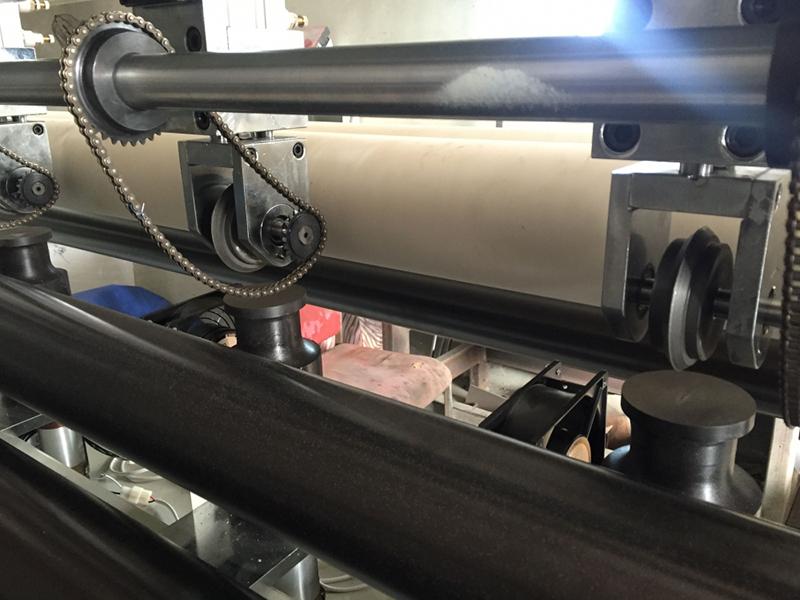

  • The tension of rewinding fabrics is controlled using the magnetic powder clutch so that the tightness is freely adjustable. Single / double air swelling shaft is optional for rewinding.
  • The feeding tension uses magnetic powder tension control so that the feeding is uniform, thus improving the smoothness and neatness of the cuts.
  • Equipped with meter counter with metering function, the machine can automatically stop at a fixed length.
  • Air shaft for unwinding and is equipped with manual correction device (automatic correction device is optional), which can effectively guarantee the straightness of the cuts.

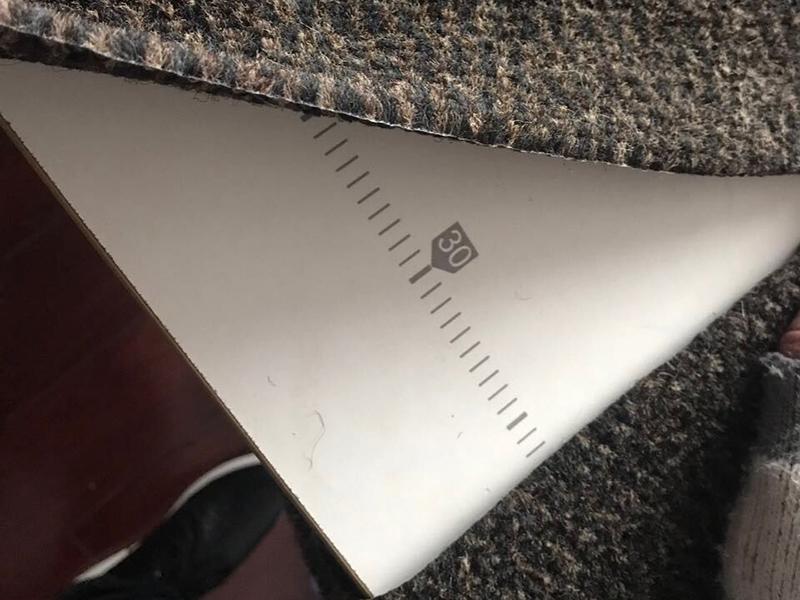

  • Ultrasonic cutting, no coarse sides, no coking, no discoloration.
  • Diverse slitting styles, such as: straight edge, serrated edge, wave lace.
