JT-200-S Ultrasonic Sewing Machine
Request a Quote

Ultrasonic Sewing Machine JT-200-S

Sewing, clothes sewing machine, industrial sewing machine

Parameters

Power Supply 220V
Input Power 1800-2500W
Output Frequency 20KHZ
Working Speed 0-20m/min
Size of Pattern Roller Width: 0-190mm; Diameter: Ø50-Ø80mm
Dimensions (length*width*height) 1200*600*1200mm
Net Weight 120KG
Request a Quote

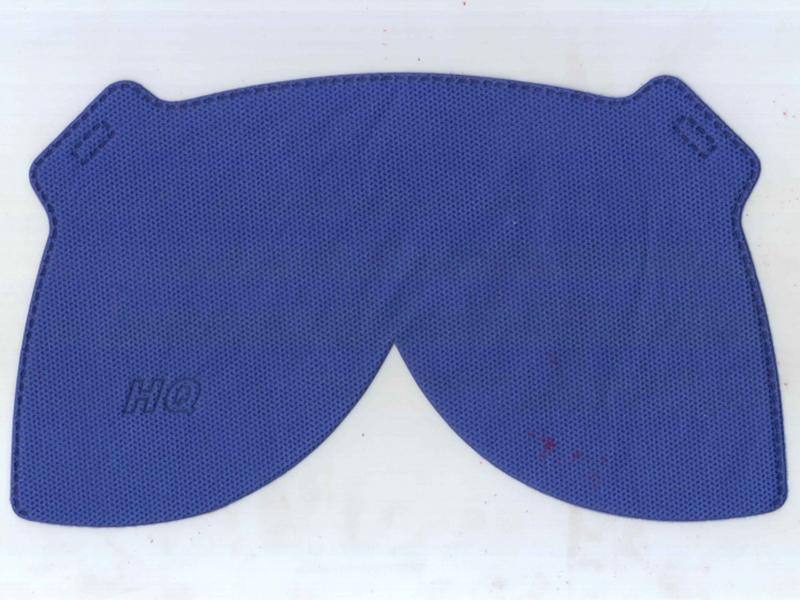

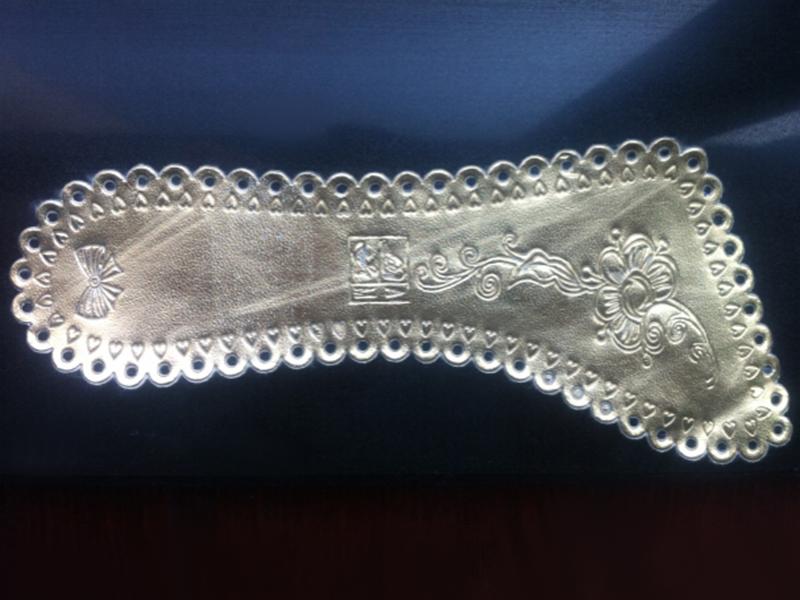

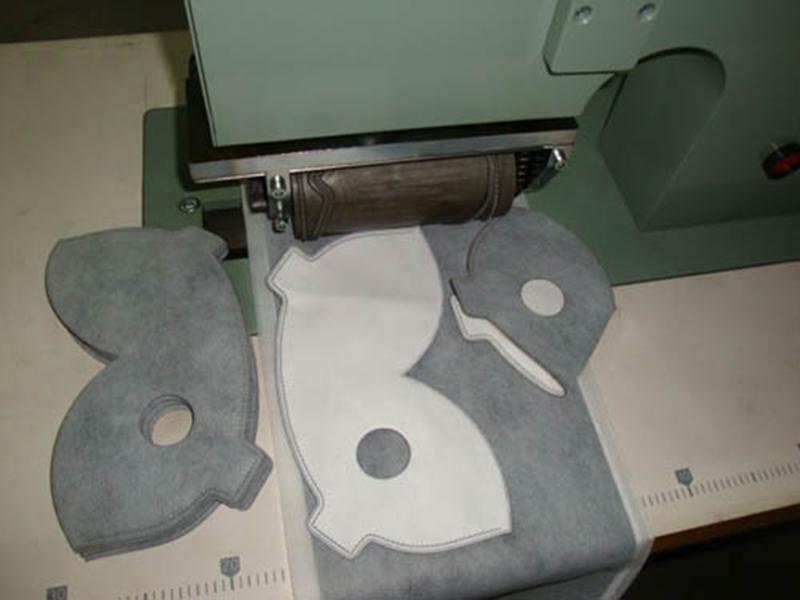

  • Sample
  • JT-200-S Ultrasonic Sewing Machine
  • JT-200-S Ultrasonic Sewing Machine
  • JT-200-S Ultrasonic Sewing Machine

Applicable materials

All kinds of chemical fiber cloths, various artificial leathers, nonwoven fabric, gush glue cotton, thermoplastic film, chemical plastic slice etc.

  • JT-100 Ultrasonic Sewing Machine
  • JT-100 Ultrasonic Sewing Machine
  • JT-100 Ultrasonic Sewing Machine

Application

The JT-200-S ultrasonic sewing machine is specially designed for the production of high quality lace garments, ribbons, decorative products, handkerchiefs, tablecloths, bedspreads, pillowcases, quilt covers, nonwoven products etc.

Configuration

  • Computer intelligent ultrasonic generator
  • 20KHz ultrasonic transducer
  • Fixed structure of bottom horn rotating
  • Single motor speed control system
  • Manual (pneumatic optional) pattern roller lifting system

Functions

  • Side Ttrimming: the one side straight or curved cutting and side melting treatment can be carried out at the same time, making the side smooth, without coarse side.
  • Melting: two layers or multi-layers can be melted together, no need for thread or needle. This process can replace sewing and the melting strength is excellent.
  • Holes Breaking: holes with different patterns can be cut out and the treatment of side melting can be carried out.
  • Material Cutting: materials can be cut into a single piece or multiple pieces at one time and the treatment of side melting can also be carried out. No coarse side will appear.
  • Forming: the processes of cutting, melting and embossing can be carried out at the same time to form the product at one time.

Features

  • The equipment is configured with a built-in computer chip and multi-channel ultrasonic protection system so as to ensure its safe and stable operation.
  • With super-strong power output, high, medium and low three gear power adjustable, it can be adapted for welding and cutting requirements of different materials and varying thicknesses.
  • The application of automatic frequency-tracking system and ultrasonic soft-start technology enables outstanding performance that is on par with international technologies.
  • There are diverse pattern rollers that can also be designed according to customer needs.
  • The working speed is four times of ordinary sewing machines and is easy to operate.
