Manual Nonwoven Bag Making Machine

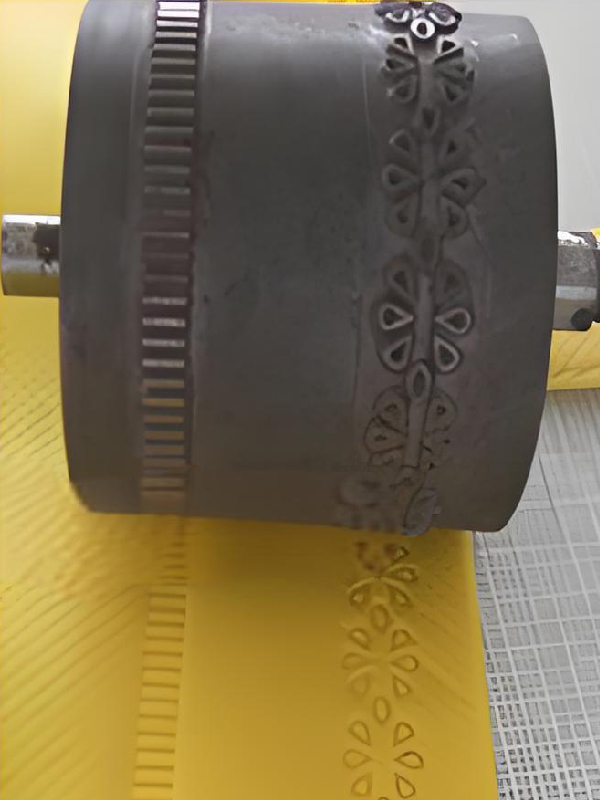

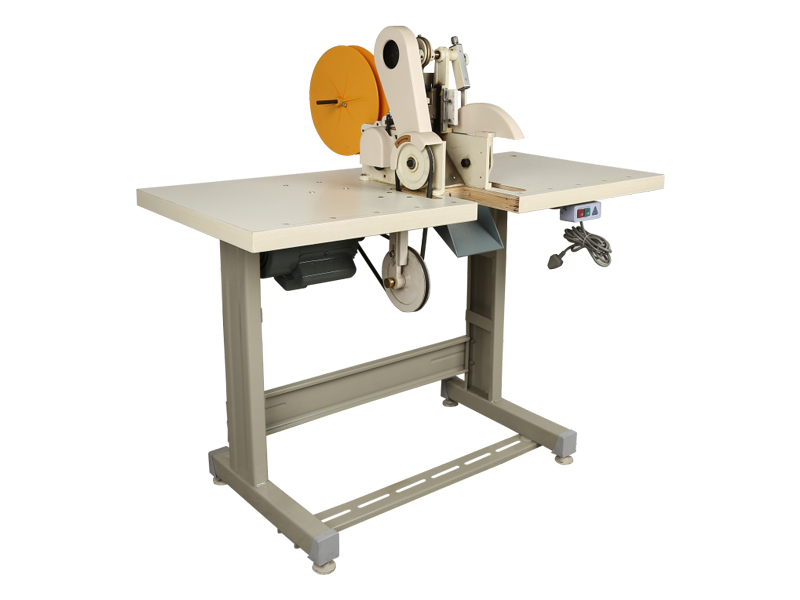

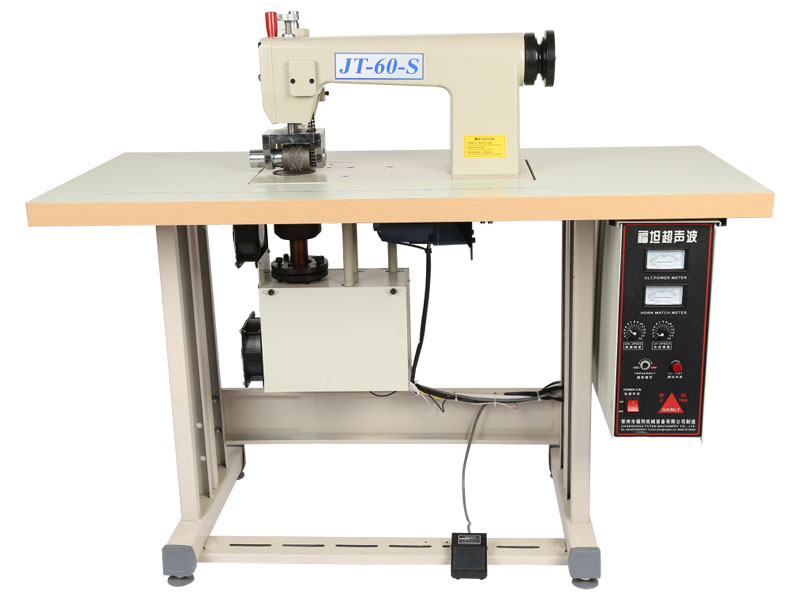

Nonwoven sewing machine
It is used for the stitching, embossing and side cutting of nonwoven bag mouths and side, as well as for the forming of the handle.
Technical parameters| Power supply | 220V |
| Working speed | 0-20m/min |
| Pattern mold size | Width: 0-50mm |
| Dimensions (L×W×H) | 1200*600*1200mm |
| Net weight | 80KG |

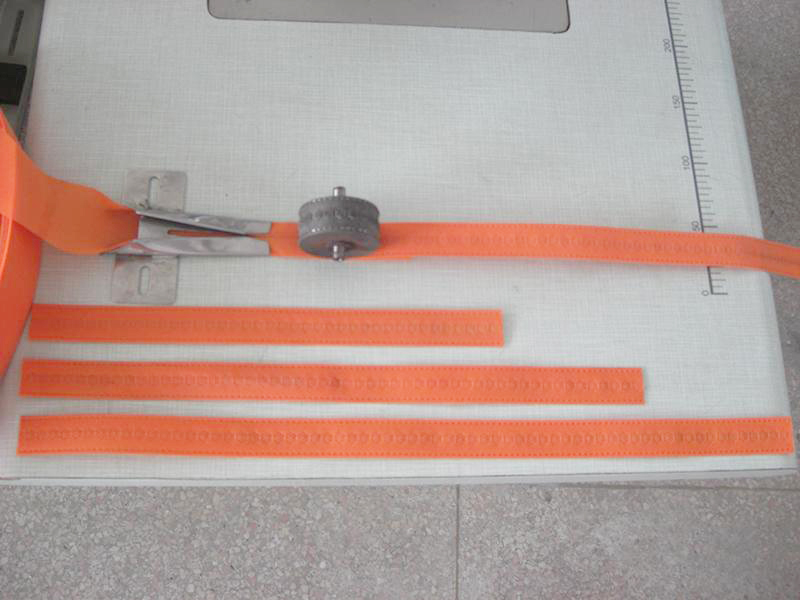

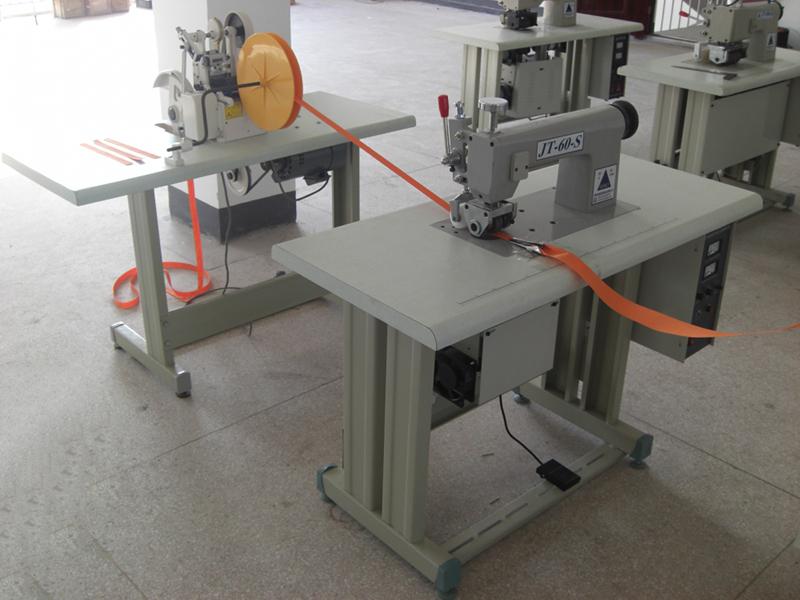

Tape cutting machine
It is used to cut off the whole handle straps.
Technical parameters| Power supply | 220V |
| Cutting width | 0-50mm |
| Cutting length | 0-1500mm |
| Production speed | 0--30pcs/min |
| Dimensions (L×W×H) | 1200*600*1200mm |
| Net weight (kg) | 50kg |

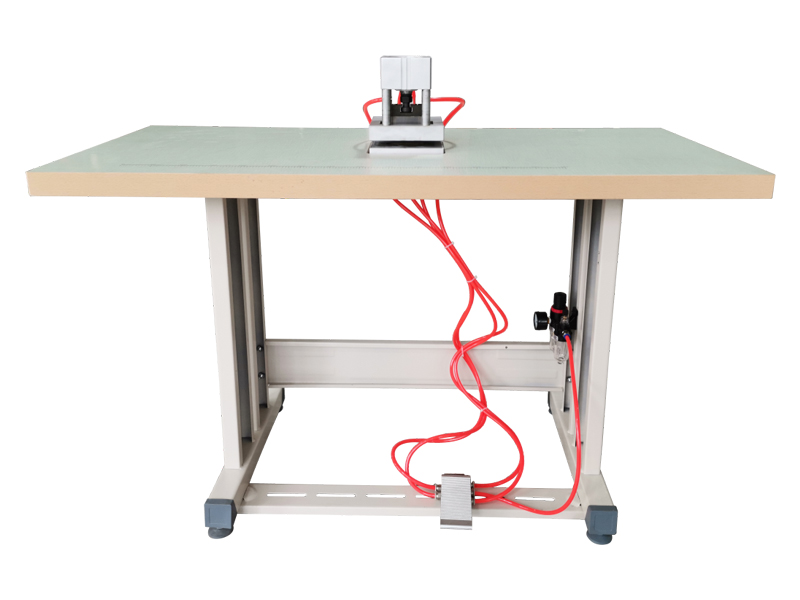

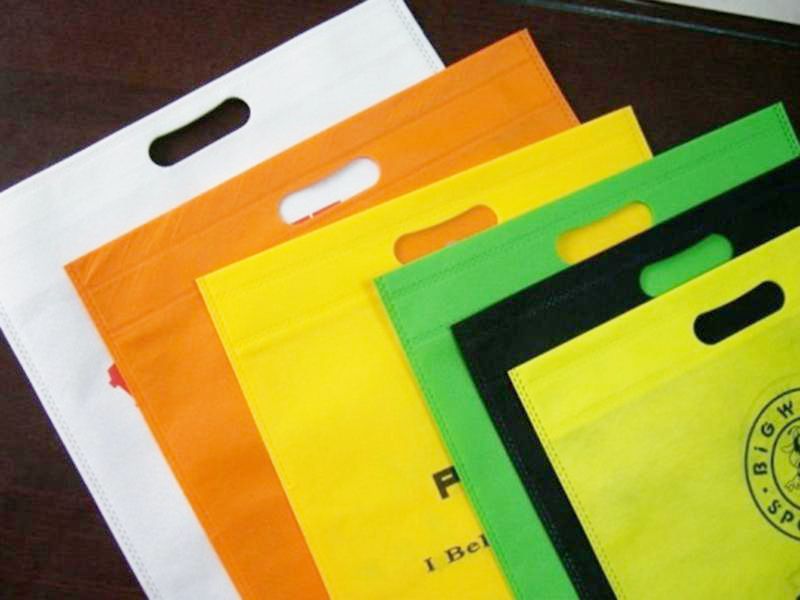

Puncher
The puncher is used to make handle holes.
Technical parameters| Working speed | 0-30 times/min |
| Air pump | 2HP |
| Air pressure | 0.6~0.8Mpa |
| Dimensions (L×W×H)mm | 1200*600*1200mm |
| Net weight | 30KG |

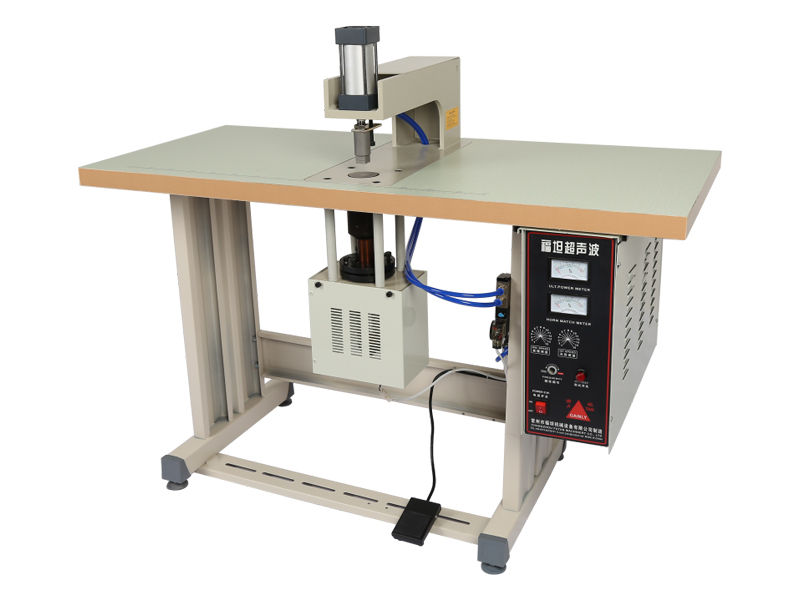

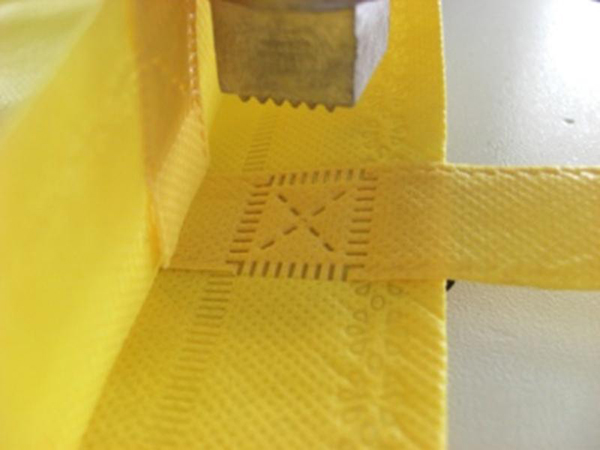

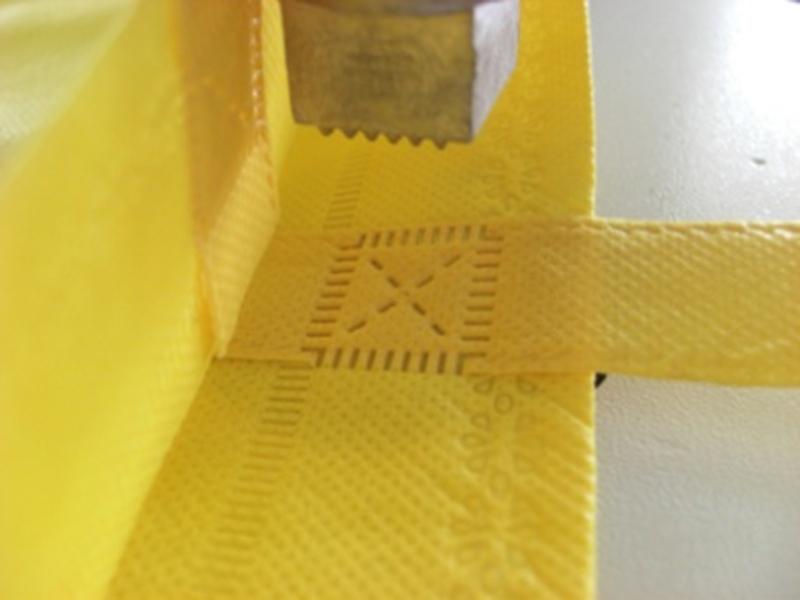

Welding machine
The welding machine is used to weld the handle strap.
Technical parameters| Power supply | 220V |
| Production efficiency | 0-50 times/min |
| Air pump | 0.6~0.8Mpa |
| Air pressure | 2HP |
| Dimensions (L×W×H)mm | 1200*600*1100mm |
| Net weight | 60kg |
